High-end Programmable Logic Controller (PLC) CPU unit with built-in I/Os - Mitsubishi Electric (MELSEC-F (FX) Series FX3U) - 32I/O [16DI (16 x digital inputs (24Vdc; Sink/Source)) + 16DO (16 x digital outputs (5-30Vdc; Source; 500mA; 0.2ms response))] - 64Ksteps (RAM; Program) memory capacity - connection capacity 256 x I/O points - with screw-clamp term. connections (I.O's) - with RS-422 communication capability - Supply voltage 24Vdc - DIN rail mounting (150mm width) - equivalent to FX3U32MTDSS

High-end Programmable Logic Controller (PLC) CPU unit with built-in I/Os - Mitsubishi Electric (MELSEC-F (FX) Series FX3U) - 32I/O [16DI (16 x digital inputs (24Vdc; Sink/Source)) + 16DO (16 x digital outputs (5-30Vdc; Sink; 500mA; 0.2ms response))] - 64Ksteps (RAM; Program) memory capacity - connection capacity 256 x I/O points - with screw-clamp term. connections (I.O's) - with RS-422 communication capability - Supply voltage 24Vdc - DIN rail mounting (150mm width) - equivalent to FX3U32MTDS

High-end Programmable Logic Controller (PLC) CPU unit with built-in I/Os - Mitsubishi Electric (MELSEC-F (FX) Series FX3U) - 32I/O [16DI (16 x digital inputs (24Vdc; Sink/Source)) + 16DO (16 x digital outputs (85-242Vac; triac; 300mA; 10ms response))] - 64Ksteps (RAM; Program) memory capacity - connection capacity 256 x I/O points - with screw-clamp term. connections (I.O's) - with RS-422 communication capability - Supply voltage 100Vac-240Vac (120Vac / 208Vac / 220Vac / 230Vac) - DIN rail mounting (150mm width) - equivalent to FX3U32MSES

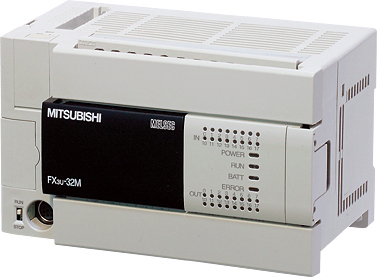

High-end Programmable Logic Controller (PLC) CPU unit with built-in I/Os - Mitsubishi Electric (MELSEC-F (FX) Series FX3U) - 32I/O [16DI (16 x digital inputs (AC inputs; 100-240Vac)) + 16DO (16 x digital outputs (Rly NO contacts; 2A / 240Vac or 30Vdc; 10ms response))] - 64Ksteps (RAM; Program) memory capacity - connection capacity 256 x I/O points - with screw-clamp term. connections (I.O's) - with RS-422 communication capability - Supply voltage 100Vac-240Vac (120Vac / 208Vac / 220Vac / 230Vac) - DIN rail mounting (182mm width) - equivalent to FX3U32MRUA1

AC geared rotary servo motor / gearmotor with keyed shaft + built-in absolute feedback encod. (26-bit) + 1/20 standard gearhead - Mitsubishi Electric (MELSERVO J5 series) - Rated output 750W / 0.75kW - Gear ratio 1/20 (gearhead) - 26-bit (equivalent to 67108864ppr) feedback - Rated current 4.7A (with 200Vac amplif.) - Supply voltage 200Vac class - Rated torque 2.4Nm nominal - Rated rotational speed 3000rpm - 80x80mm flange mounting - IP44 - rated for 0...+60°C ambient - equivalent to HKKT7M3G1120

AC geared rotary servo motor / gearmotor with keyed shaft + built-in absolute feedback encod. (26-bit) + 1/12 standard gearhead - Mitsubishi Electric (MELSERVO J5 series) - Rated output 750W / 0.75kW - Gear ratio 1/12 (gearhead) - 26-bit (equivalent to 67108864ppr) feedback - Rated current 4.7A (with 200Vac amplif.) - Supply voltage 200Vac class - Rated torque 2.4Nm nominal - Rated rotational speed 3000rpm - 80x80mm flange mounting - IP44 - rated for 0...+60°C ambient - equivalent to HKKT7M3G1112

AC geared rotary servo motor / gearmotor with straight shaft + built-in e/m brake + built-in absolute feedback encod. (26-bit) + 1/5 high-precision gearhead (shaft output) - Mitsubishi Electric (MELSERVO J5 series) - Rated output 750W / 0.75kW - Gear ratio 1/5 (gearhead) - 26-bit (equivalent to 67108864ppr) feedback - Rated current 4.7A (with 200Vac amplif.) - Supply voltage 200Vac class - Rated torque 2.4Nm nominal - Rated rotational speed 3000rpm - 80x80mm flange mounting - IP44 - rated for 0...+60°C ambient - equivalent to HKKT7M3BG715

AC geared rotary servo motor / gearmotor with straight shaft + built-in e/m brake + built-in absolute feedback encod. (26-bit) + 1/45 high-precision gearhead (shaft output) - Mitsubishi Electric (MELSERVO J5 series) - Rated output 750W / 0.75kW - Gear ratio 1/45 (gearhead) - 26-bit (equivalent to 67108864ppr) feedback - Rated current 4.7A (with 200Vac amplif.) - Supply voltage 200Vac class - Rated torque 2.4Nm nominal - Rated rotational speed 3000rpm - 80x80mm flange mounting - IP44 - rated for 0...+60°C ambient - equivalent to HKKT7M3BG7145

AC geared rotary servo motor / gearmotor with straight shaft + built-in e/m brake + built-in absolute feedback encod. (26-bit) + 1/33 high-precision gearhead (shaft output) - Mitsubishi Electric (MELSERVO J5 series) - Rated output 750W / 0.75kW - Gear ratio 1/33 (gearhead) - 26-bit (equivalent to 67108864ppr) feedback - Rated current 4.7A (with 200Vac amplif.) - Supply voltage 200Vac class - Rated torque 2.4Nm nominal - Rated rotational speed 3000rpm - 80x80mm flange mounting - IP44 - rated for 0...+60°C ambient - equivalent to HKKT7M3BG7133

AC geared rotary servo motor / gearmotor with straight shaft + built-in e/m brake + built-in absolute feedback encod. (26-bit) + 1/21 high-precision gearhead (shaft output) - Mitsubishi Electric (MELSERVO J5 series) - Rated output 750W / 0.75kW - Gear ratio 1/21 (gearhead) - 26-bit (equivalent to 67108864ppr) feedback - Rated current 4.7A (with 200Vac amplif.) - Supply voltage 200Vac class - Rated torque 2.4Nm nominal - Rated rotational speed 3000rpm - 80x80mm flange mounting - IP44 - rated for 0...+60°C ambient - equivalent to HKKT7M3BG7121

AC geared rotary servo motor / gearmotor with straight shaft + built-in e/m brake + built-in absolute feedback encod. (26-bit) + 1/11 high-precision gearhead (shaft output) - Mitsubishi Electric (MELSERVO J5 series) - Rated output 750W / 0.75kW - Gear ratio 1/11 (gearhead) - 26-bit (equivalent to 67108864ppr) feedback - Rated current 4.7A (with 200Vac amplif.) - Supply voltage 200Vac class - Rated torque 2.4Nm nominal - Rated rotational speed 3000rpm - 80x80mm flange mounting - IP44 - rated for 0...+60°C ambient - equivalent to HKKT7M3BG7111

AC geared rotary servo motor / gearmotor with straight shaft + built-in e/m brake + built-in absolute feedback encod. (26-bit) + 1/5 high-precision gearhead (flange output) - Mitsubishi Electric (MELSERVO J5 series) - Rated output 750W / 0.75kW - Gear ratio 1/5 (gearhead) - 26-bit (equivalent to 67108864ppr) feedback - Rated current 4.7A (with 200Vac amplif.) - Supply voltage 200Vac class - Rated torque 2.4Nm nominal - Rated rotational speed 3000rpm - 80x80mm flange mounting - IP44 - rated for 0...+60°C ambient - equivalent to HKKT7M3BG515

AC geared rotary servo motor / gearmotor with straight shaft + built-in e/m brake + built-in absolute feedback encod. (26-bit) + 1/45 high-precision gearhead (flange output) - Mitsubishi Electric (MELSERVO J5 series) - Rated output 750W / 0.75kW - Gear ratio 1/45 (gearhead) - 26-bit (equivalent to 67108864ppr) feedback - Rated current 4.7A (with 200Vac amplif.) - Supply voltage 200Vac class - Rated torque 2.4Nm nominal - Rated rotational speed 3000rpm - 80x80mm flange mounting - IP44 - rated for 0...+60°C ambient - equivalent to HKKT7M3BG5145

AC geared rotary servo motor / gearmotor with straight shaft + built-in e/m brake + built-in absolute feedback encod. (26-bit) + 1/33 high-precision gearhead (flange output) - Mitsubishi Electric (MELSERVO J5 series) - Rated output 750W / 0.75kW - Gear ratio 1/33 (gearhead) - 26-bit (equivalent to 67108864ppr) feedback - Rated current 4.7A (with 200Vac amplif.) - Supply voltage 200Vac class - Rated torque 2.4Nm nominal - Rated rotational speed 3000rpm - 80x80mm flange mounting - IP44 - rated for 0...+60°C ambient - equivalent to HKKT7M3BG5133

AC geared rotary servo motor / gearmotor with straight shaft + built-in e/m brake + built-in absolute feedback encod. (26-bit) + 1/21 high-precision gearhead (flange output) - Mitsubishi Electric (MELSERVO J5 series) - Rated output 750W / 0.75kW - Gear ratio 1/21 (gearhead) - 26-bit (equivalent to 67108864ppr) feedback - Rated current 4.7A (with 200Vac amplif.) - Supply voltage 200Vac class - Rated torque 2.4Nm nominal - Rated rotational speed 3000rpm - 80x80mm flange mounting - IP44 - rated for 0...+60°C ambient - equivalent to HKKT7M3BG5121

AC geared rotary servo motor / gearmotor with straight shaft + built-in e/m brake + built-in absolute feedback encod. (26-bit) + 1/11 high-precision gearhead (flange output) - Mitsubishi Electric (MELSERVO J5 series) - Rated output 750W / 0.75kW - Gear ratio 1/11 (gearhead) - 26-bit (equivalent to 67108864ppr) feedback - Rated current 4.7A (with 200Vac amplif.) - Supply voltage 200Vac class - Rated torque 2.4Nm nominal - Rated rotational speed 3000rpm - 80x80mm flange mounting - IP44 - rated for 0...+60°C ambient - equivalent to HKKT7M3BG5111

AC geared rotary servo motor / gearmotor with keyed shaft + built-in e/m brake + built-in absolute feedback encod. (26-bit) + 1/5 standard gearhead - Mitsubishi Electric (MELSERVO J5 series) - Rated output 750W / 0.75kW - Gear ratio 1/5 (gearhead) - 26-bit (equivalent to 67108864ppr) feedback - Rated current 4.7A (with 200Vac amplif.) - Supply voltage 200Vac class - Rated torque 2.4Nm nominal - Rated rotational speed 3000rpm - 80x80mm flange mounting - IP44 - rated for 0...+60°C ambient - equivalent to HKKT7M3BG115

AC geared rotary servo motor / gearmotor with keyed shaft + built-in e/m brake + built-in absolute feedback encod. (26-bit) + 1/20 standard gearhead - Mitsubishi Electric (MELSERVO J5 series) - Rated output 750W / 0.75kW - Gear ratio 1/20 (gearhead) - 26-bit (equivalent to 67108864ppr) feedback - Rated current 4.7A (with 200Vac amplif.) - Supply voltage 200Vac class - Rated torque 2.4Nm nominal - Rated rotational speed 3000rpm - 80x80mm flange mounting - IP44 - rated for 0...+60°C ambient - equivalent to HKKT7M3BG1120

AC geared rotary servo motor / gearmotor with keyed shaft + built-in e/m brake + built-in absolute feedback encod. (26-bit) + 1/12 standard gearhead - Mitsubishi Electric (MELSERVO J5 series) - Rated output 750W / 0.75kW - Gear ratio 1/12 (gearhead) - 26-bit (equivalent to 67108864ppr) feedback - Rated current 4.7A (with 200Vac amplif.) - Supply voltage 200Vac class - Rated torque 2.4Nm nominal - Rated rotational speed 3000rpm - 80x80mm flange mounting - IP44 - rated for 0...+60°C ambient - equivalent to HKKT7M3BG1112

AC brushless rotary servo motor with straight shaft + built-in absolute feedback encod. (26-bit) + safety functions - Mitsubishi Electric (MELSERVO J5 series) - Rated output 750W / 0.75kW - 26-bit (equivalent to 67108864ppr) feedback - Rated current 2.4A (with 200Vac or 400Vac amplif.) - Supply voltage 200Vac or 400Vac class - Rated torque 2.4Nm nominal - Rated rotational speed 1500rpm - 80x80mm flange mounting - IP67 - rated for 0...+60°C ambient - equivalent to HKKT7M34WWS
