CONNECTOR FOR FX3U-4AD-ADP (Small)

CONNECTOR FOR FX3U-4AD-ADP (Big)

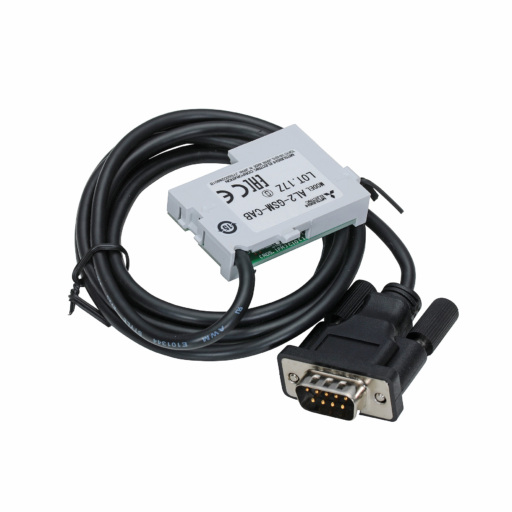

Cable / cordset - between Alpha2 main unit and PC/Modem - Mitsubishi Electric - 1.5m length - equivalent to AL2GSMCAB

Memory cassette - Mitsubishi Electric - 5KBytes memory capacity - equivalent to AL2EEPROM2

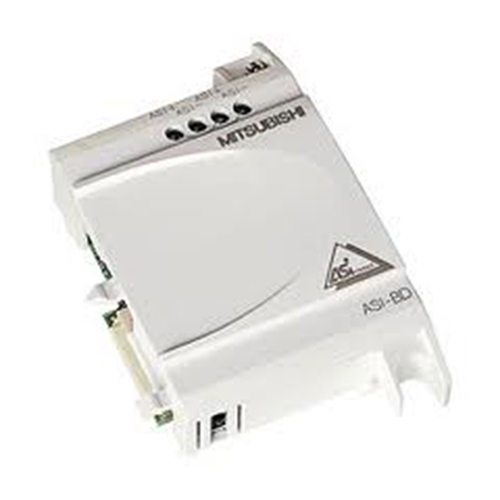

AS-Interface module - Mitsubishi Electric (MELSEC-F (FX) Series a2 Alpha2) - with AS-interface communication capability - Supply voltage 30Vac / 5Vdc - equivalent to AL2ASIBD

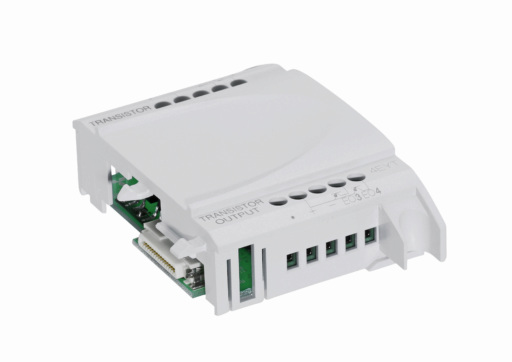

DC digital output expansion module - Mitsubishi Electric (MELSEC-F (FX) Series a2 Alpha2) - 4I/O [4DO (4 x digital outputs (5-24Vdc; 1A))] - with screw-clamp term. connections - Supply voltage 24Vdc - DIN rail mounting - equivalent to AL24EYT

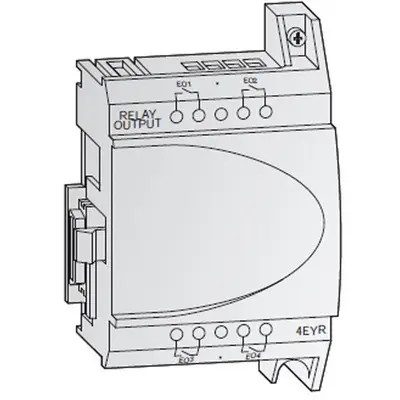

AC/DC digital output expansion module - Mitsubishi Electric (MELSEC-F (FX) Series a2 Alpha2) - 4I/O [4DO (4 x digital outputs (Rly. NO contacts; 2A / 250Vac or 30Vdc))] - with screw-clamp term. connections - Supply voltage 220Vac-240Vac (230Vac) - DIN rail mounting - equivalent to AL24EYR

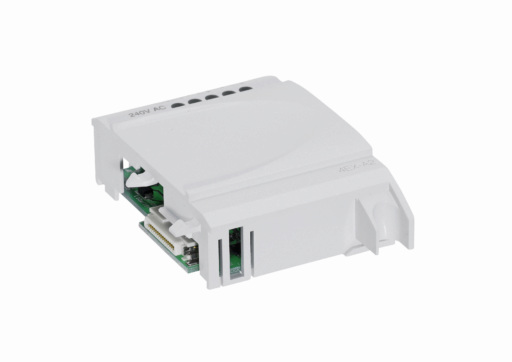

AC digital input expansion module - Mitsubishi Electric (MELSEC-F (FX) Series a2 Alpha2) - 4I/O [4DI (4 x digital inputs (AC inputs; 220Vac-240Vac))] - with screw-clamp term. connections - Supply voltage 220Vac-240Vac (230Vac) - DIN rail mounting - equivalent to AL24EXA2

DC digital input expansion module - Mitsubishi Electric (MELSEC-F (FX) Series a2 Alpha2) - 4I/O [4DI (4 x digital inputs (24Vdc))] - with screw-clamp term. connections - Supply voltage 24Vdc - DIN rail mounting - equivalent to AL24EX

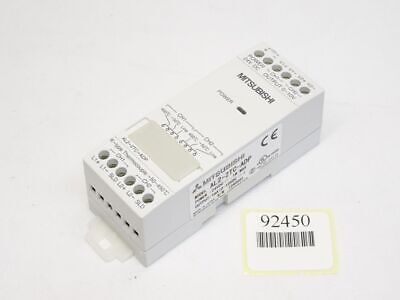

Analog expansion module - Mitsubishi Electric (MELSEC-F (FX) Series a2 Alpha2) - 2I/O [2AI (2 x analog inputs (Thermocouple type K))] - with screw-clamp term. connections - Supply voltage 24Vdc - DIN rail mounting - equivalent to AL22TCADP

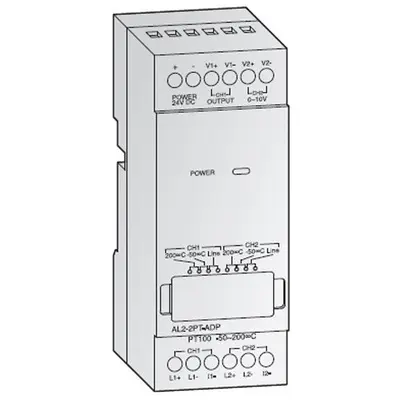

Analog expansion module - Mitsubishi Electric (MELSEC-F (FX) Series a2 Alpha2) - 2I/O [2AI (2 x analog inputs (RTD Pt100))] - with screw-clamp term. connections - Supply voltage 24Vdc - DIN rail mounting - equivalent to AL22PTADP

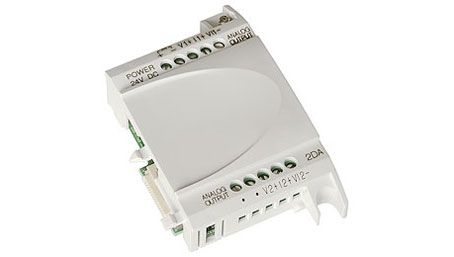

Analog expansion module - Mitsubishi Electric (MELSEC-F (FX) Series a2 Alpha2) - 2I/O [2AO (2 x analog outputs (0-10Vdc / 4-20mA))] - with screw-clamp term. connections - Supply voltage 24Vdc - DIN rail mounting - equivalent to AL22DA

Compact Programmable Logic Controller (PLC) CPU unit with integrated I/Os - Mitsubishi Electric (MELSEC-F (FX) Series a2 Alpha2) - 32I/O [8AI (8 x analog inputs (0-10Vdc; 9-bit conversion)) + 15DI (15 x digital inputs (24Vdc; Sink / source; 10-20ms)) + 9DO (9 x digital outputs (250Vac / 30Vdc; Rly NO. contact; 10ms))] - 200 function blocks (5KBytes) (EEPROM; Program) memory capacity - with screw-clamp term. connections (I.O's) - Supply voltage 24Vdc - equivalent to AL224MRD

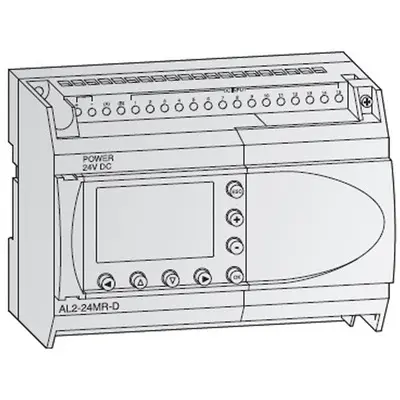

Compact Programmable Logic Controller (PLC) CPU unit with integrated I/Os - Mitsubishi Electric (MELSEC-F (FX) Series a2 Alpha2) - 24I/O [15DI (15 x digital inputs (24Vdc; Sink/Source; 35-130ms)) + 9DO (9 x digital outputs (250Vac / 30Vdc; Rly NO. contact; 10ms))] - 200 function blocks (5KBytes) (EEPROM; Program) memory capacity - with screw-clamp term. connections (I.O's) - Supply voltage 100Vac-240Vac (120Vac / 208Vac / 220Vac / 230Vac) - equivalent to AL224MRA

Compact Programmable Logic Controller (PLC) CPU unit with integrated I/Os - Mitsubishi Electric (MELSEC-F (FX) Series a2 Alpha2) - 22I/O [8AI (8 x analog inputs (0-10Vdc; 9-bit conversion)) + 8DI (8 x digital inputs (24Vdc; Sink / source; 10-20ms)) + 6DO (6 x digital outputs (250Vac / 30Vdc; Rly NO. contact; 10ms))] - 200 function blocks (5KBytes) (EEPROM; Program) memory capacity - with screw-clamp term. connections (I.O's) - Supply voltage 24Vdc - equivalent to AL214MRD

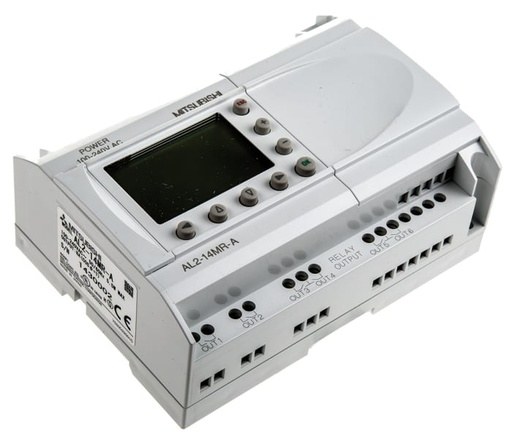

Compact Programmable Logic Controller (PLC) CPU unit with integrated I/Os - Mitsubishi Electric (MELSEC-F (FX) Series a2 Alpha2) - 14I/O [8DI (8 x digital inputs (24Vdc; Sink/Source; 35-130ms)) + 6DO (6 x digital outputs (250Vac / 30Vdc; Rly NO. contact; 10ms))] - 200 function blocks (5KBytes) (EEPROM; Program) memory capacity - with screw-clamp term. connections (I.O's) - Supply voltage 100Vac-240Vac (120Vac / 208Vac / 220Vac / 230Vac) - equivalent to AL214MRA

Compact Programmable Logic Controller (PLC) CPU unit with integrated I/Os - Mitsubishi Electric (MELSEC-F (FX) Series a2 Alpha2) - 16I/O [6AI (6 x analog inputs (0-10Vdc; 9-bit conversion)) + 6DI (6 x digital inputs (24Vdc; Sink / source; 10-20ms)) + 4DO (4 x digital outputs (250Vac / 30Vdc; Rly NO. contact; 10ms))] - 200 function blocks (5KBytes) (EEPROM; Program) memory capacity - with screw-clamp term. connections (I.O's) - Supply voltage 24Vdc - equivalent to AL210MRD

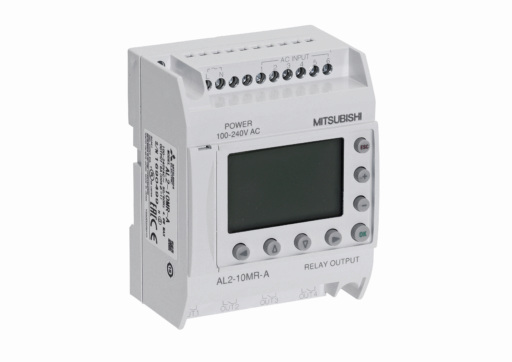

Compact Programmable Logic Controller (PLC) CPU unit with integrated I/Os - Mitsubishi Electric (MELSEC-F (FX) Series a2 Alpha2) - 10I/O [6DI (6 x digital inputs (24Vdc; Sink/Source; 35-130ms)) + 4DO (4 x digital outputs (250Vac / 30Vdc; Rly NO. contact; 10ms))] - 200 function blocks (5KBytes) (EEPROM; Program) memory capacity - with screw-clamp term. connections (I.O's) - Supply voltage 100Vac-240Vac (120Vac / 208Vac / 220Vac / 230Vac) - equivalent to AL210MRA

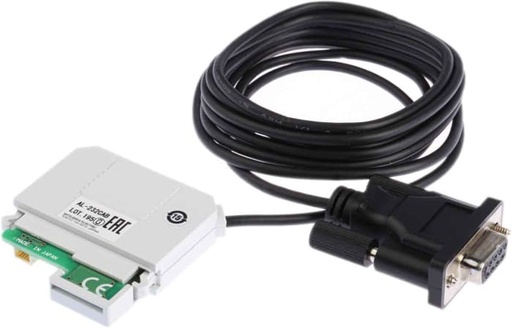

Cable / cordset - between Alpha2 main unit and PC - Mitsubishi Electric - 2.5m length - equivalent to AL232CAB

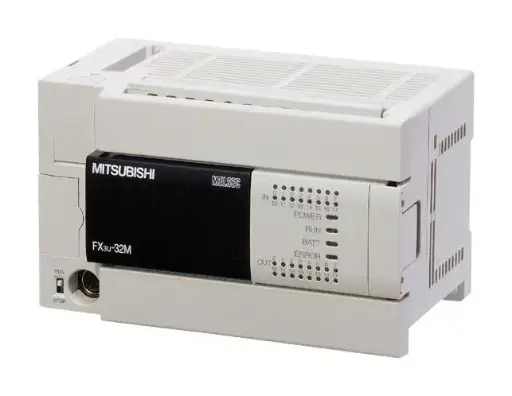

High-end Programmable Logic Controller (PLC) CPU unit with built-in I/Os - Mitsubishi Electric (MELSEC-F (FX) Series FX3U) - 32I/O [16DI (16 x digital inputs (24Vdc; Sink/Source)) + 16DO (16 x digital outputs (Rly NO contacts; 2A / 240Vac or 30Vdc; 10ms response))] - 64Ksteps (RAM; Program) memory capacity - connection capacity 256 x I/O points - with screw-clamp term. connections (I.O's) - with RS-422 communication capability - Supply voltage 100Vac-240Vac (120Vac / 208Vac / 220Vac / 230Vac) - DIN rail mounting (150mm width) - equivalent to FX3U32MRES
