AC geared rotary servo motor / gearmotor with straight shaft + built-in e/m brake + built-in absolute feedback encod. (22-bit) + 1/29 high-precision gearhead (flange output) - Mitsubishi Electric (MELSERVO J4 series) - Rated output 5000W / 5kW - Gear ratio 1/29 (gearhead) - 22-bit (equivalent to 4194304ppr) feedback - Rated current 11A - Supply voltage 400Vac class - Rated torque 23.9Nm nominal - Rated rotational speed 2000rpm - 430x430mm flange mounting (grbx. output) - 40arcminutes (0.67°) maximum backlash - IP44 - with 2 x MS-type connectors - rated for 0...+40°C ambient - equivalent to HGSR5024BG1129

AC geared rotary servo motor / gearmotor with straight shaft + built-in e/m brake + built-in absolute feedback encod. (22-bit) + 1/17 high-precision gearhead (flange output) - Mitsubishi Electric (MELSERVO J4 series) - Rated output 5000W / 5kW - Gear ratio 1/17 (gearhead) - 22-bit (equivalent to 4194304ppr) feedback - Rated current 11A - Supply voltage 400Vac class - Rated torque 23.9Nm nominal - Rated rotational speed 2000rpm - 340x340mm flange mounting (grbx. output) - 40arcminutes (0.67°) maximum backlash - IP44 - with 2 x MS-type connectors - rated for 0...+40°C ambient - equivalent to HGSR5024BG1117

AC geared rotary servo motor / gearmotor with straight shaft + built-in e/m brake + built-in absolute feedback encod. (22-bit) + 1/11 high-precision gearhead (flange output) - Mitsubishi Electric (MELSERVO J4 series) - Rated output 5000W / 5kW - Gear ratio 1/11 (gearhead) - 22-bit (equivalent to 4194304ppr) feedback - Rated current 11A - Supply voltage 400Vac class - Rated torque 23.9Nm nominal - Rated rotational speed 2000rpm - 340x340mm flange mounting (grbx. output) - 40arcminutes (0.67°) maximum backlash - IP44 - with 2 x MS-type connectors - rated for 0...+40°C ambient - equivalent to HGSR5024BG1111

AC brushless rotary servo motor with straight shaft + built-in e/m brake + built-in absolute feedback encod. (22-bit) - Mitsubishi Electric (MELSERVO J4 series) - Rated output 5000W / 5kW - 22-bit (equivalent to 4194304ppr) feedback - Rated current 11A - Supply voltage 400Vac class - Rated torque 23.9Nm nominal - Rated rotational speed 2000rpm - 176x176mm flange mounting - IP67 - with 2 x MS-type connectors - rated for 0...+40°C ambient - equivalent to HGSR5024B

AC brushless rotary servo motor with straight shaft + built-in absolute feedback encod. (22-bit) - Mitsubishi Electric (MELSERVO J4 series) - Rated output 5000W / 5kW - 22-bit (equivalent to 4194304ppr) feedback - Rated current 11A - Supply voltage 400Vac class - Rated torque 23.9Nm nominal - Rated rotational speed 2000rpm - 176x176mm flange mounting - IP67 - with 2 x MS-type connectors - rated for 0...+40°C ambient - equivalent to HGSR5024

AC brushless rotary servo motor with straight shaft + built-in absolute feedback encod. (22-bit) - Mitsubishi Electric (MELSERVO J4 series) - Rated output 5000W / 5kW - 22-bit (equivalent to 4194304ppr) feedback - Rated current 22A - Supply voltage 200Vac class - Rated torque 23.9Nm nominal - Rated rotational speed 2000rpm - 176x176mm flange mounting - IP67 - with 2 x MS-type connectors - rated for 0...+40°C ambient - equivalent to HGSR502

AC brushless rotary servo motor with straight shaft + built-in absolute feedback encod. (22-bit) + safety unit compatibility - Mitsubishi Electric (MELSERVO J4 series) - Rated output 4200W / 4.2kW - 22-bit (equivalent to 4194304ppr) feedback - Rated current 19A - Supply voltage 200Vac class - Rated torque 40.1Nm nominal - Rated rotational speed 1000rpm - 176x176mm flange mounting - IP67 - with 2 x MS-type connectors - rated for 0...+40°C ambient - equivalent to HGSR421W0C

AC brushless rotary servo motor with keyed shaft + built-in absolute feedback encod. (22-bit) - Mitsubishi Electric (MELSERVO J4 series) - Rated output 4200W / 4.2kW - 22-bit (equivalent to 4194304ppr) feedback - Rated current 19A - Supply voltage 200Vac class - Rated torque 40.1Nm nominal - Rated rotational speed 1000rpm - 176x176mm flange mounting - IP67 - with 2 x MS-type connectors - rated for 0...+40°C ambient - equivalent to HGSR421K

AC brushless rotary servo motor with straight shaft + built-in absolute feedback encod. (22-bit) + oil seal - Mitsubishi Electric (MELSERVO J4 series) - Rated output 4200W / 4.2kW - 22-bit (equivalent to 4194304ppr) feedback - Rated current 19A - Supply voltage 200Vac class - Rated torque 40.1Nm nominal - Rated rotational speed 1000rpm - 176x176mm flange mounting - IP67 - with 2 x MS-type connectors - rated for 0...+40°C ambient - equivalent to HGSR421J

AC brushless rotary servo motor with straight shaft + built-in e/m brake + built-in absolute feedback encod. (22-bit) + safety unit compatibility - Mitsubishi Electric (MELSERVO J4 series) - Rated output 4200W / 4.2kW - 22-bit (equivalent to 4194304ppr) feedback - Rated current 19A - Supply voltage 200Vac class - Rated torque 40.1Nm nominal - Rated rotational speed 1000rpm - 176x176mm flange mounting - IP67 - with 2 x MS-type connectors - rated for 0...+40°C ambient - equivalent to HGSR421BW0C

AC brushless rotary servo motor with keyed shaft + built-in e/m brake + built-in absolute feedback encod. (22-bit) - Mitsubishi Electric (MELSERVO J4 series) - Rated output 4200W / 4.2kW - 22-bit (equivalent to 4194304ppr) feedback - Rated current 19A - Supply voltage 200Vac class - Rated torque 40.1Nm nominal - Rated rotational speed 1000rpm - 176x176mm flange mounting - IP67 - with 2 x MS-type connectors - rated for 0...+40°C ambient - equivalent to HGSR421BK

AC brushless rotary servo motor with keyed shaft + built-in e/m brake + built-in absolute feedback encod. (22-bit) + oil seal - Mitsubishi Electric (MELSERVO J4 series) - Rated output 4200W / 4.2kW - 22-bit (equivalent to 4194304ppr) feedback - Rated current 19A - Supply voltage 200Vac class - Rated torque 40.1Nm nominal - Rated rotational speed 1000rpm - 176x176mm flange mounting - IP67 - with 2 x MS-type connectors - rated for 0...+40°C ambient - equivalent to HGSR421BJK

AC brushless rotary servo motor with straight shaft + built-in e/m brake + built-in absolute feedback encod. (22-bit) + oil seal - Mitsubishi Electric (MELSERVO J4 series) - Rated output 4200W / 4.2kW - 22-bit (equivalent to 4194304ppr) feedback - Rated current 19A - Supply voltage 200Vac class - Rated torque 40.1Nm nominal - Rated rotational speed 1000rpm - 176x176mm flange mounting - IP67 - with 2 x MS-type connectors - rated for 0...+40°C ambient - equivalent to HGSR421BJ

AC brushless rotary servo motor with straight shaft + built-in e/m brake + built-in absolute feedback encod. (22-bit) - Mitsubishi Electric (MELSERVO J4 series) - Rated output 4200W / 4.2kW - 22-bit (equivalent to 4194304ppr) feedback - Rated current 19A - Supply voltage 200Vac class - Rated torque 40.1Nm nominal - Rated rotational speed 1000rpm - 176x176mm flange mounting - IP67 - with 2 x MS-type connectors - rated for 0...+40°C ambient - equivalent to HGSR421B

AC brushless rotary servo motor with straight shaft + built-in absolute feedback encod. (22-bit) - Mitsubishi Electric (MELSERVO J4 series) - Rated output 4200W / 4.2kW - 22-bit (equivalent to 4194304ppr) feedback - Rated current 19A - Supply voltage 200Vac class - Rated torque 40.1Nm nominal - Rated rotational speed 1000rpm - 176x176mm flange mounting - IP67 - with 2 x MS-type connectors - rated for 0...+40°C ambient - equivalent to HGSR421

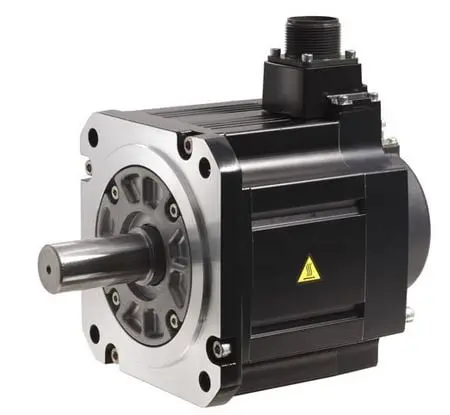

AC brushless rotary servo motor with keyed shaft + built-in absolute feedback encod. (22-bit) - Mitsubishi Electric (MELSERVO J4 series) - Rated output 3500W / 3.5kW - 22-bit (equivalent to 4194304ppr) feedback - Rated current 14A - Supply voltage 200Vac class - Rated torque 16.7Nm nominal - Rated rotational speed 2000rpm - 176x176mm flange mounting - IP67 - with 2 x MS-type connectors - rated for 0...+40°C ambient - equivalent to HGSR352K

AC brushless rotary servo motor with keyed shaft + built-in absolute feedback encod. (22-bit) + oil seal - Mitsubishi Electric (MELSERVO J4 series) - Rated output 3500W / 3.5kW - 22-bit (equivalent to 4194304ppr) feedback - Rated current 14A - Supply voltage 200Vac class - Rated torque 16.7Nm nominal - Rated rotational speed 2000rpm - 176x176mm flange mounting - IP67 - with 2 x MS-type connectors - rated for 0...+40°C ambient - equivalent to HGSR352JK

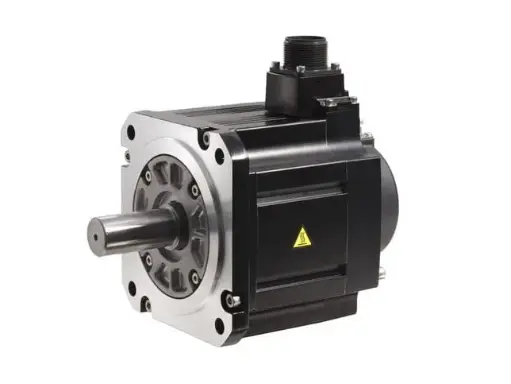

AC brushless rotary servo motor with straight shaft + built-in absolute feedback encod. (22-bit) + oil seal - Mitsubishi Electric (MELSERVO J4 series) - Rated output 3500W / 3.5kW - 22-bit (equivalent to 4194304ppr) feedback - Rated current 14A - Supply voltage 200Vac class - Rated torque 16.7Nm nominal - Rated rotational speed 2000rpm - 176x176mm flange mounting - IP67 - with 2 x MS-type connectors - rated for 0...+40°C ambient - equivalent to HGSR352J

AC geared rotary servo motor / gearmotor with keyed shaft + built-in absolute feedback encod. (22-bit) + 1/5 high-precision gearhead (shaft output) - Mitsubishi Electric (MELSERVO J4 series) - Rated output 3500W / 3.5kW - Gear ratio 1/5 (gearhead) - 22-bit (equivalent to 4194304ppr) feedback - Rated current 14A - Supply voltage 200Vac class - Rated torque 16.7Nm nominal - Rated rotational speed 2000rpm - 120x120mm flange mounting (grbx. output) - 3arcminutes (0.05°) maximum backlash - IP44 - with 2 x MS-type connectors - rated for 0...+40°C ambient - equivalent to HGSR352G7K15

AC geared rotary servo motor / gearmotor with keyed shaft + built-in absolute feedback encod. (22-bit) + 1/21 high-precision gearhead (shaft output) - Mitsubishi Electric (MELSERVO J4 series) - Rated output 3500W / 3.5kW - Gear ratio 1/21 (gearhead) - 22-bit (equivalent to 4194304ppr) feedback - Rated current 14A - Supply voltage 200Vac class - Rated torque 16.7Nm nominal - Rated rotational speed 2000rpm - 170x170mm flange mounting (grbx. output) - 3arcminutes (0.05°) maximum backlash - IP44 - with 2 x MS-type connectors - rated for 0...+40°C ambient - equivalent to HGSR352G7K121
